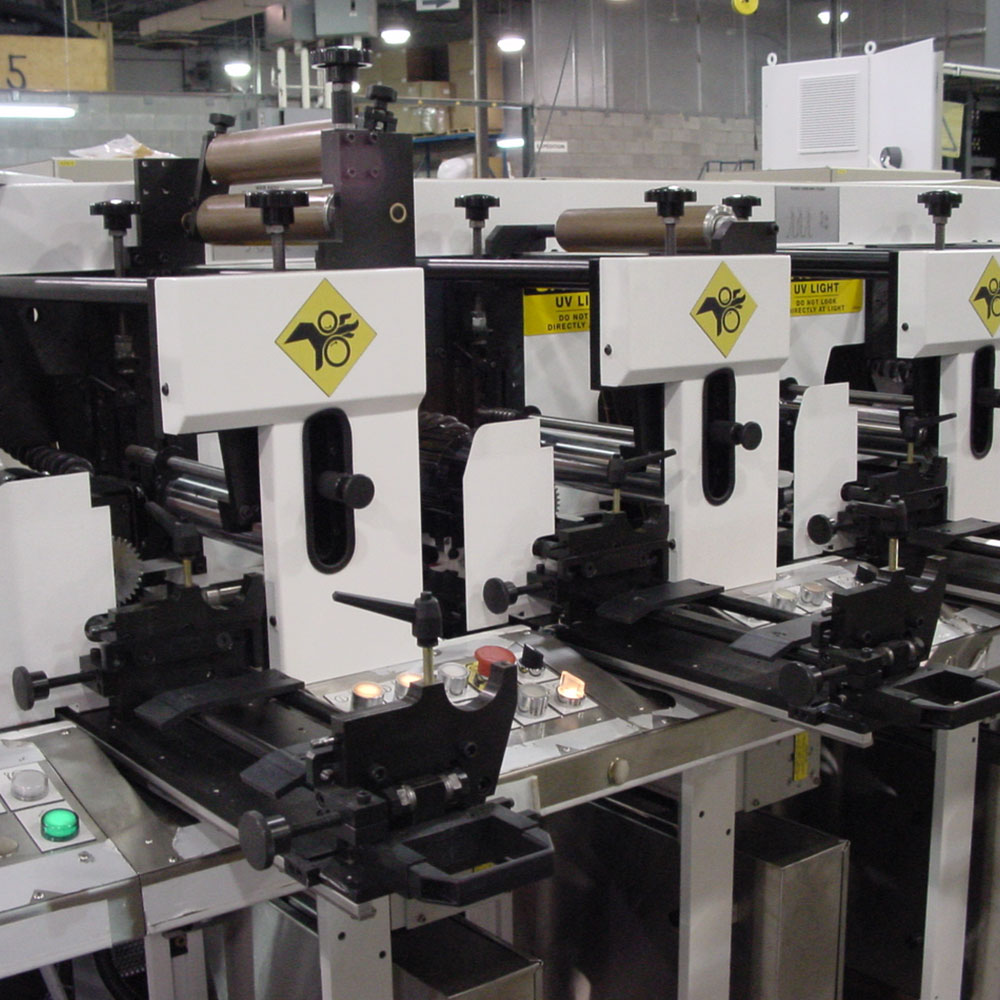

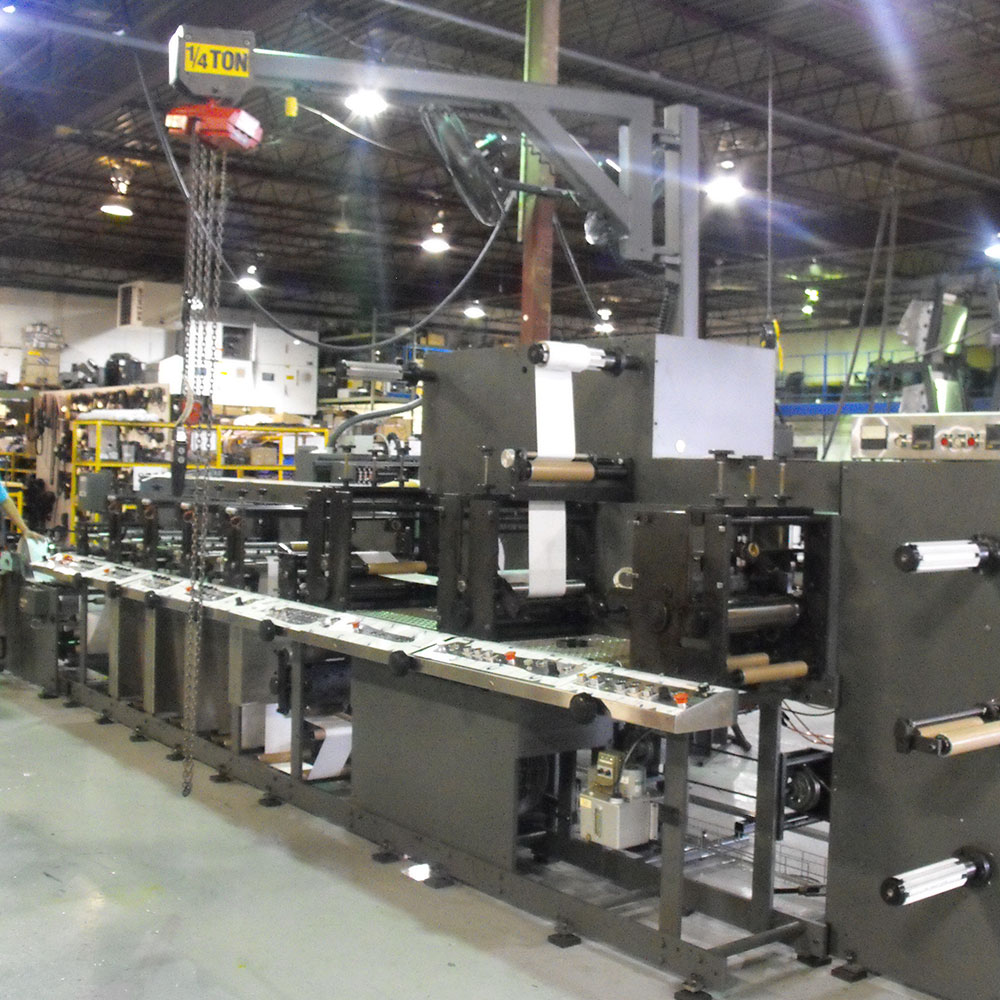

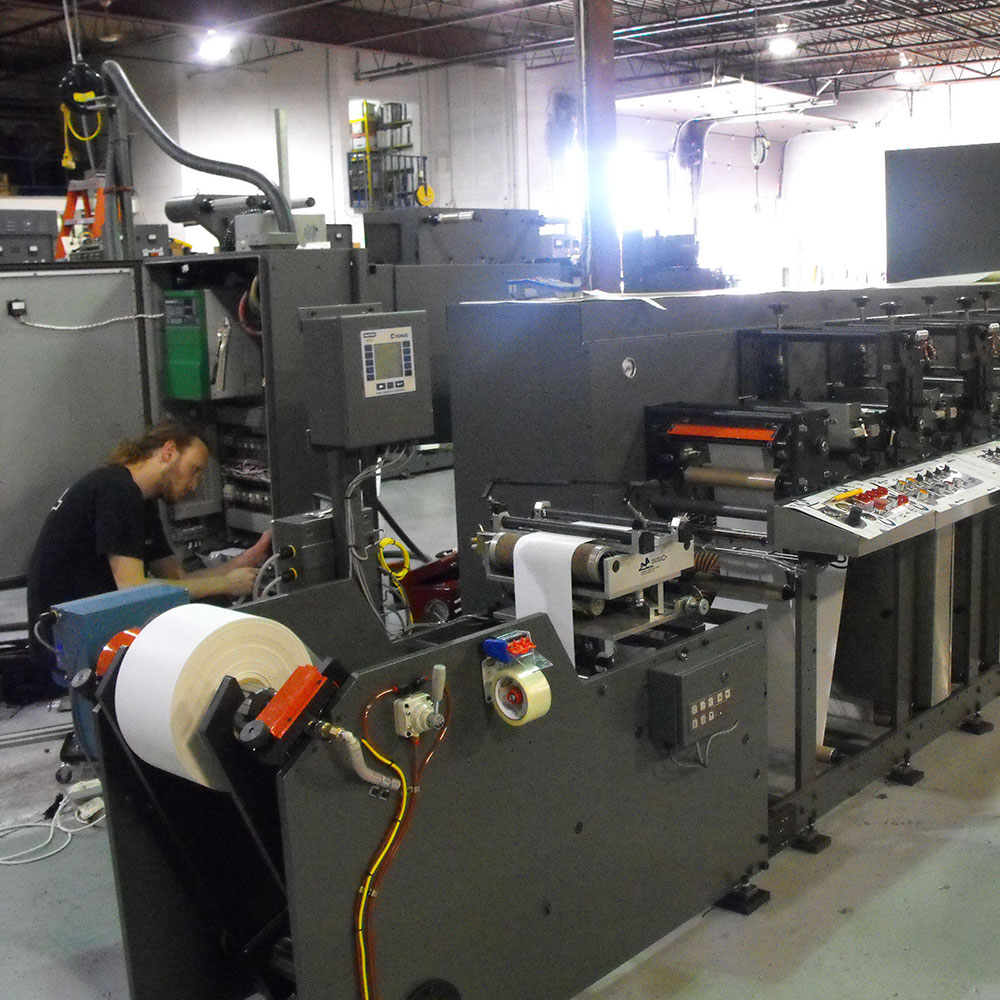

DBX Press 10"

Our most flexible label printing machine! This unit will print the most complex designs, with exceptional registration performance. Based on a time-tested platform, anything can be done with this machine.

The DBX Press can be configured in two ways:

  • Equipped with up to 12 colors, with 360° register high precision gear boxes or single axis servo
  • Equipped with with up to 10 colors in the conventional open gear drive assembly.

Features of the DBX Press include a 42 inch unwinder, lifting system, fully automatic digital electromagnetic unwind brake assembly and much more.

*Please note that we are continually developing and improving our products. As such, all features and specifications on this page are subject to change and the image may not be represent actual product.

  • 42 inch unwinder
  • Lifting system
  • Fully automatic digital electromagnetic unwind brake assembly
  • Variable infeed system for exceptional register control
  • Air core holders throughout
  • Hot air and IR drying system
  • Doctor Blades on all stations
  • Ready-to-fit UV curing on all flexo stations
  • Lamination unwinder
  • Pneumatic clutches on all tension controllers
  • Pre-determined double counter
  • Split gears on the die cutting stations and sheeter station
  • Electronic sensing web-guider
  • Second unwinder
  • Silk screen module
  • Turn bar
  • Delam/Relam unit
  • UV curing
  • Second waste rewinder
  • Cold foil attachment
  • Coupon kit for unwinding a web in the printing area
  • Plow folding module
  • Hot stamping
  • Fan folder
  • Sheeter/conveyor stacker
  • And more. Ask our specialists for more information!


GENERAL SPECIFICATIONS DBX PLATFORM
ModelMODEL DBX 1000
Maximum printing10” (254mm)
Maximum paper width10 1⁄4” (260mm)
Maximum die-cutting width10” (254mm)
Printing repeat6” to 22” (152 to 559mm)
Maximum die-cutting width22” (559mm)
Unwind capacity42” dia. (1067mm)
Rewind capacityDouble 30” dia. (762mm)
Waste rewind capacity24” dia. (610mm)
Gearing1/8 circular pitch
Maximum mechanical speed500ft/min. (151m/min.) or
600FPM Servo (182m/min.)
DriveA.C motor or Servo
Lubricating systemAutomatic
Control panelIn front of the press
Air pressure req.100 PSI (7 bar)
Power requirement380 or 240 V ±10%, 3ph, 50 or 60HZ
Our small team of specialized staff is equipped to meet your most specific printing needs. We carry out 99% of machining in-house and will therefore work closely with you to develop a product that is perfectly suited to your company.

Contact us to find out how Gonderflex can help you.
