GFSR 3000

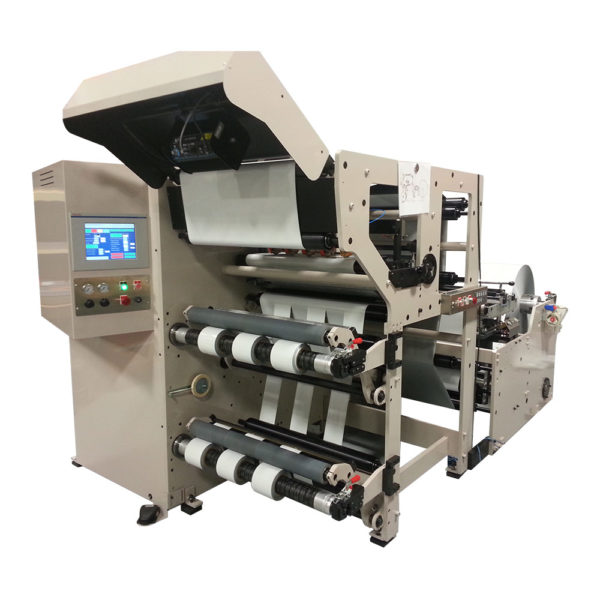

GFSR 3000 – Slitter/rewinder/inspection machine

Ideal for label and film finishing, as well as inspection, the GFSR 3000 can be built to your specifications. This equipment can handle paper widths of up to 30 inches, can be used with film and paper substrates and is designed for material ranging from unsupported or laminated PET film to saper and tags of up to 12 pts.

Features of the GFSR 3000 include a fully automatic closed loop unwind brake assembly, an auto web gripper to maintain web position during roll change, and more.

*Please note that we are continually developing and improving our products. As such, the image and information on this page is subject to change.

Get a quote Read our brochure

Category:

GFSR-3000 Features

  • Unwind unit
  • 40” roll capacity
  • 3” (76mm) core shaft
  • Closed loop automatic tension control with electromagnetic brake, able to hold tension up to 75 lbs
  • Roll loader capacity of 1000 lbs
  • In-feed nip roll station with AC vector motor drive
  • Ultrasonic sensing web guide with splicing table, edge sensing
    • Line guide is optional
  • Motorized double rewind unit
  • 24” roll capacity, including AC vector Motor
  • Predetermined electronic linear counter
  • Foot pedals to deflate rewind shafts
  • Auto web gripper for easy roll change
  • Auto stop at roll end
  • Splice detector
  • High intensity stroboscope lamp from
    • Unilux Led model
GFSR-3000 Options

  • Differential shaft rewind
  • Slitting station with 5 air shear knife sets
  • Differential core shafts for 3” (76mm) cores from Convertech
  • Static eliminator bars
  • Lay-on rollers
  • Control to accept a slow-down and stop signal from your add-on device
  • 100% Inspection/fault detection system
  • Visual inspection system
  • Razor slitting with multi blade
Model GFSR – 3000
Maximum paper width 30.00″
Minimum slit width 4″
Unwind capacity 40″ dia.
Rewind capacity 24″ dia.
Maximum mechanical speed 750ft/min. (225m/min.)
Drive A.C vector motor drive
Control panel Touch screen
Air pressure 100 PSI (7 bar)
Power requirement 480 V ±10%, 3ph
Frequency 50-60 Hz
Substrate Film and paper Film and paper
Color of the press Grey
Language on labels English
Material range From unsupported or laminated PET film to paper and tags of up to 12 pt.
