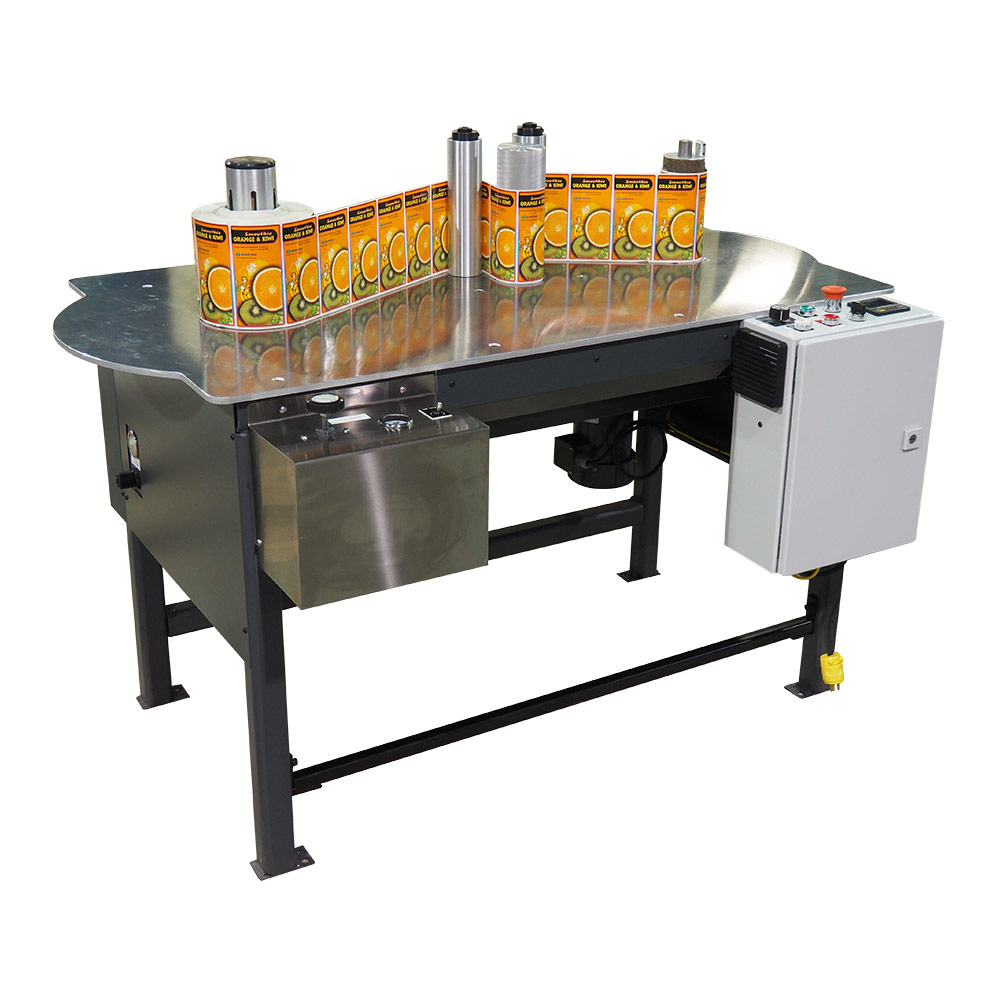

GFTTR Table Top Rewinder
AN AFFORDABLE SOLUTION FOR UNWINDING, INSPECTING AND REWINDING FILM
The GFTTR Table Top Rewinder can handle widths of up to 8″ and is designed for pressure sensitive label stock.
It can carry a range of core shaft sizes and has many optional features, so that it will meet your specific requirements. Some of these options include a stroboscopic light, a clear label detector and a razor blade slitting module.
*Please note that we are continually developing and improving our products. As such, the image and information on this page is subject to change.
- Stroboscopic light
- Label counter
- Missing label detector
- Clear label detector
- Razor blade slitting module (comes with three knife holders)
|Maximum paper width||8”|
|Minimum paper width||1”|
|Maximum unwind roll diameter||30”|
|Maximum rewind roll diameter||18”|
|Maximum mechanical speed||300ft/min.|
|Available core shafts||Air lock, mechanical leaf and wedge lock|
|Available core shaft sizes:||1” to 3” (other sizes available upon request)|
|Power requirement||240V ±10%, 1ph, 60Hz|
|Substrate||Pressure sensitive label stock|
|Counting method:||Linear counter|
Contact us to find out how Gonderflex can help you.
