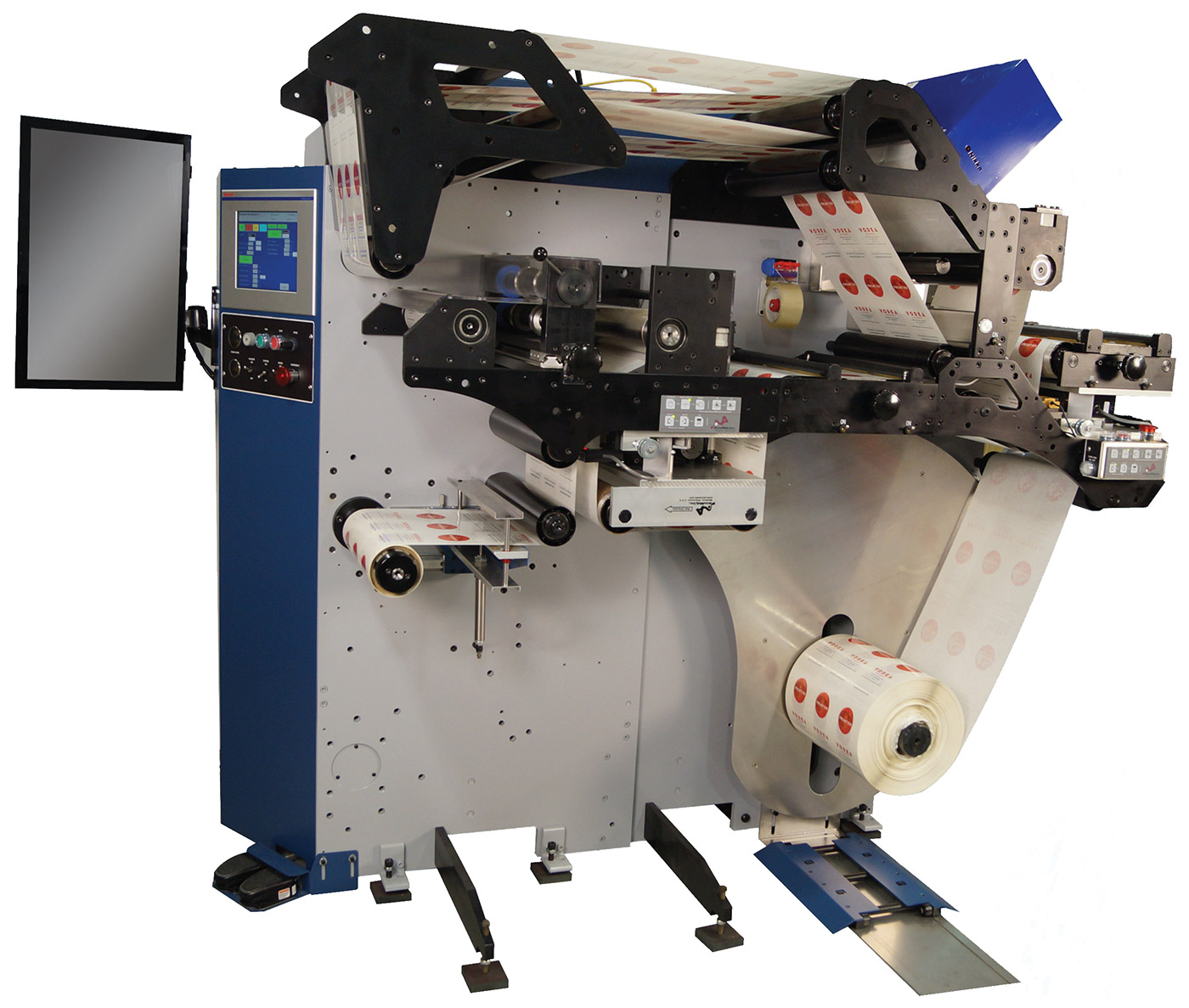

GFSR

Slitting/Rewinding/Inspection Equipment
13”, 16”, 20”

This is our standard model, suitable for 100% inspection camera integration or stroboscope lamp inspection. The GFSR can be use for unsupported film slitting, rewinding and inspection applications. It can also be equipped with a standard air shaft or double differential shafts, with widths ranging from 13’’ to 30’’.

Choose from one of three models, each providing features such as a fully automatic closed loop unwind brake assembly, an auto web gripper to maintain web position during roll change, and more. All Gonderflex products can be built to your exact specifications.

*Please note that we are continually developing and improving our products. As such, the image and information on this page is subject to change.

Get a quote Read our brochure

Category:

GFSR Slitting/Rewinding/Inspection Equipment Features

  • 40” unwinder with lifting system
  • Fully automatic, closed loop unwind brake assembly
  • Dual 18” motorized rewinding shafts with automatic tension control
  • Auto web gripper to maintain web position during roll change
  • 11” touch screen control panel
  • Clear material sensing electronic web guide
  • 2 adjustable splicing tables
  • End of roll detector with auto-stop feature
  • Splice & flag detector
  • Predetermined counter
  • Inside / outside winding
  • Choices of slitting stations include razor blades or shear knives or crush knives
GFSR Slitting/Rewinding/Inspection Equipment Options

  • 100% inspection camera
  • Automatic strobe light assembly
  • Lay-on roller on each rewind shaft for flat rewinding
GFSR Slitting/Rewinding/Inspection Equipment General Specifications
Maximum paper width – GFSR-1300 349 mm (13.75 in)
Maximum paper width – GFSR-1600 425 mm (16.75 in)
Maximum paper width – GFSR-2000 527 mm (20.75 in)
Unwind capacity 915 mm (40 in diameter)
Rewind capacity – Single Rewind Configuration 508 mm (20 in diameter)
Rewind capacity – Double Rewind Configuration 457 mm (18 in diameter)
Maximum mechanical speed 1000 ft/min (300 m/min)
Drive AC vector motor drive
Control panel Touch screen
Air pressure 100 PSI (7 bar)
Power requirement 400-480 V ± 10%, 3ph,
Frequency 50-60 Hz
Substrates Pressure sensitive label stock and unsupported film
Our small team of specialized staff is equipped to meet your most specific printing needs. We carry out 99% of machining in-house and will therefore work closely with you to develop a product that is perfectly suited to your company.

Contact us to find out how Gonderflex can help you.
